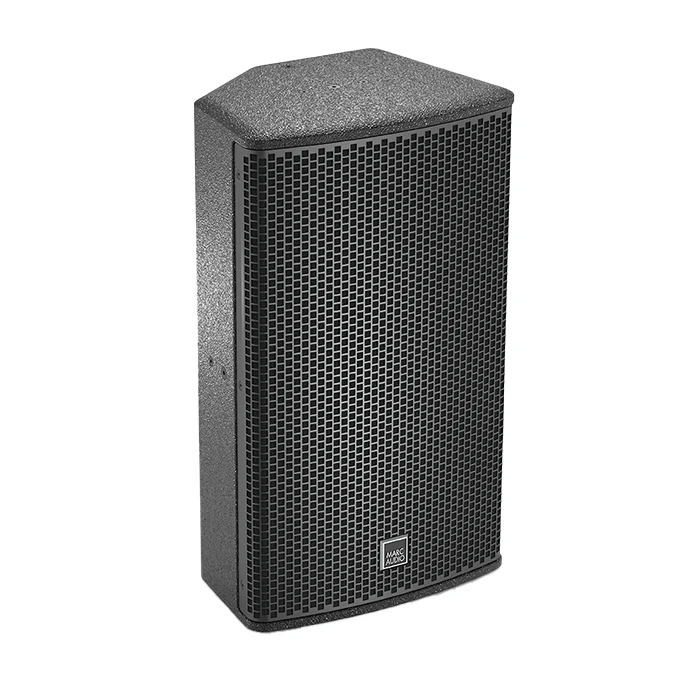

MC-15 Series 500 Watts
The Marc Audio MC-15 Series is a 500 Watts compact 15” passive two way loudspeaker that is ideally suited for a wide range of portable or installed sound reinforcement applications. The MC-15 consists of a trapezodial enclosure housing a high excursion LF 1 x 15” (75mm voice coil, ferrite) reflex loaded low frequency driver with low mass voice coil for improved frequency response, with a HF 1×3“ (1.4” throat, 75mm voice coil, neodymium) high temperature compression driver ,with nominal coverage of 80° x 50° dispersion pattern.
OVERVIEW
The Marc Audio MC-15 Series is a 500 Watts compact 15” passive two way loudspeaker that is ideally suited for a wide range of portable or installed sound reinforcement applications. The MC-15 consists of a trapezodial enclosure housing a high excursion LF 1 x 15” (75mm voice coil, ferrite) reflex loaded low frequency driver with low mass voice coil for improved frequency response, with a HF 1×3“ (1.4” throat, 75mm voice coil, neodymium) high temperature compression driver ,with nominal coverage of 80° x 50° dispersion pattern.
Technical Specifications:
|
Frequency Response |
50Hz ~ 18KHz (±3 dB ) 30Hz ~18KHz (-10dB )) |
|
Nominal coverage |
((-6dB): 80 ゚× 50 ゚ |
|
Sensitivity |
(@1w/1m): 97dB |
|
Power rating |
500W (AES) |
|
Nominal impendance |
8 Ohms |
|
Maximum SPL |
123dB SPL，129dB SPL peak |
|
Drivers |
HF 1×3” (1.4“throat, 75mm voice coil, neodymium) |
|
Connectors |
NEUTRIK NL4MP*2 |
|
Speaker Cable |
(Sub out 1 + 1-) |
|
Materials |
15mm, 18mm Baltic Birch Plywood |
|
Finish |
Black Polyurea Coatings |
|
Grill |
Black Epoxy Mesh Grill with Acoustically Reticulated Material |
|
Rigging |
M8 Rigging |
|
Dimensions(H*W*D) |
695*430*336mm |
