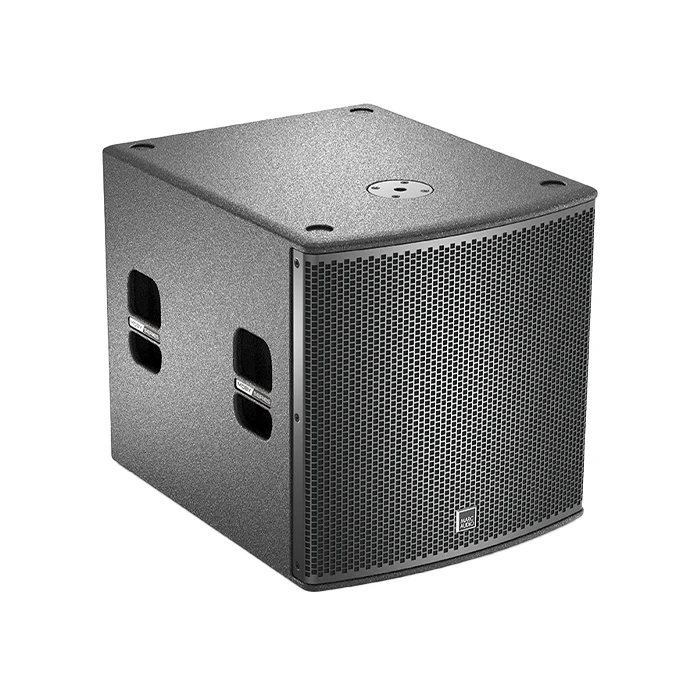

MC-15S Front Loaded Subwoofers
The Marc Audio MC-15S passive front loaded subwoofers are designed to work with the 2way MC series speakers while being flexible enough to work with other passive loudspeakers, The MC subwoofer series are perfect for portable PA and installation application.The MC-15S Subwoofers is constructed from 15mm, 18mm (3/4”) Russian Birch Plywood enclosure with high quality Poly- urethane paint and includes a powder coated perforated steel mesh grille with foam. a mount- ing pole socket is included to be able to carry 2way satellite speakers. The rear panel connec- tors panel carries Neutrik NL4 SpeakON* connectors.
OVERVIEW
The Marc Audio MC-15S passive front loaded subwoofers are designed to work with the 2way MC series speakers while being flexible enough to work with other passive loudspeakers, The MC subwoofer series are perfect for portable PA and installation application.The MC-15S Subwoofers is constructed from 15mm, 18mm (3/4”) Russian Birch Plywood enclosure with high quality Poly- urethane paint and includes a powder coated perforated steel mesh grille with foam. a mount- ing pole socket is included to be able to carry 2way satellite speakers. The rear panel connec- tors panel carries Neutrik NL4 SpeakON* connectors.
Technical Specifications:
|
Frequency Response |
50Hz ~ 150Hz (±3 dB ) 40Hz ~ 200Hz (-10dB ) |
|
Nominal coverage |
((-6dB) |
|
Sensitivity |
(@1w/1m): 94dB |
|
Power rating |
750W (AES) |
|
Nominal impendance |
8 Ohms |
|
Maximum SPL |
121 dB SPL，127dB SPL peak |
|
Drivers |
1×15”(100mm voice coil, ferrite) ) |
|
Connectors |
NEUTRIK NL4MP*2 |
|
Speaker Cable |
( 1 + 1-) |
|
Materials |
15mm, 18mm Baltic Birch Plywood |
|
Finish |
Black Polyurea Coatings |
|
Grill |
Black Epoxy Mesh Grill with Acoustically Reticulated Material |
|
Rigging |
36mm Support base + M6 Rigging |
|
Dimensions(H*W*D) |
523*460*624mm |
