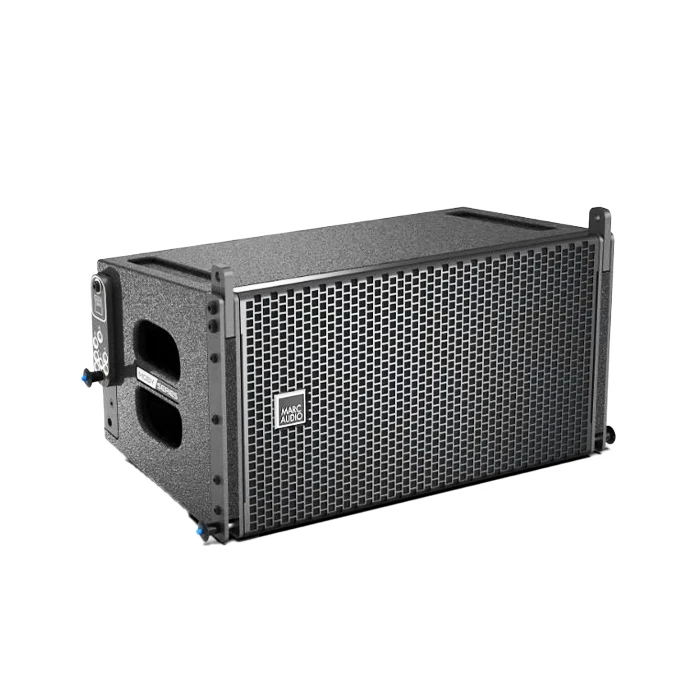

MOBY 110A Line Array Speaker
The Marc Audio MOBY 110 is a 16 Ohm Two-way bi-amp passive line array speaker with 1×10” NEO (65mm VC) -MID – LOW Driver and 1 x 3” NEO ( 75mm VC) 1.4” Throat Com- pression Driver specially designed to cater for small & medium live touring performance + permanent installation projects.
The Marc Audio MOBY 110 Mid-Low Drivers are made with humidity resistant paper cone, coupled with an optimised waveguide covering 10° vertical and 90° horizontal dispersion.
The MOBY 110 is Ultra compact and has a solid enclosure made with 15mm or 18mm high quality birch plywood and finished polyurea paint which features anti-scratch and water resistants .
The MOBY 110 can be flown, ground stacked or pole-mounted on a MOBY215A Bass Speaker The MOBY 110 uses EASE FOCUS acoustic simulation.
OVERVIEW
The Marc Audio MOBY 110 is a 16 Ohm Two-way bi-amp passive line array speaker with 1x10” NEO (65mm VC) -MID - LOW Driver and 1 x 3” NEO ( 75mm VC) 1.4” Throat Com- pression Driver specially designed to cater for small & medium live touring performance + permanent installation projects.
The Marc Audio MOBY 110 Mid-Low Drivers are made with humidity resistant paper cone, coupled with an optimised waveguide covering 10° vertical and 90° horizontal dispersion.
The MOBY 110 is Ultra compact and has a solid enclosure made with 15mm or 18mm high quality birch plywood and finished polyurea paint which features anti-scratch and water resistants .
The MOBY 110 can be flown, ground stacked or pole-mounted on a MOBY215A Bass Speaker The MOBY 110 uses EASE FOCUS acoustic simulation.
Technical Specifications:
|
Frequency Response |
90Hz ~ 18KHz (±3 dB) 75Hz ~ 20KHz (-10dB) |
|
Nominal coverage |
(-6dB): 90° x 10° |
|
Sensitivity |
(@1W/1M): 103dB |
|
Power rating |
350W (AES) |
|
Nominal impendance |
16 Ohms |
|
Maximum SPL |
128 dB SPL, 134dB SPL Peak |
|
Drivers |
HF 1x3” (1.4” Throat, 75mm Voice coil, Neodymium) LF 1x10” (65mm Voice coil, Neodymium) |
|
Connectors |
Neutrik NL4MP*2 |
|
Speaker Cable |
1+ 1- |
|
Materials |
15mm,18mm Baltic Birch Plywood |
|
Finish Grill |
Black Polyurea Coatings Black Epoxy Mesh Grill with |
|
Acoustically Reticulated Material |
|
|
Rigging |
4 Rigging, 0° - 10° adjustable |
|
Dimensions(H*W*D) |
547×310×307(mm) |
|
Weight |
20KG |
